HARRISON SUPERDUCT®
11614 STATE ROUTE 88 - GARRETTSVILLE, OH 44231 USA
CORZAN® CPVC DUCT PIPE & FITTINGS
LIST DIMENSIONS
Printable
CORZAN CPVC® Pipe & Fitting Dimensions
Click here for printable pdf
CORZAN® CPVC DUCT FITTINGS & PIPE
See Transition Guide Here
Roof Flashing
CORZAN® CPVC Duct Wye
CORZAN® CPVC Duct Cap

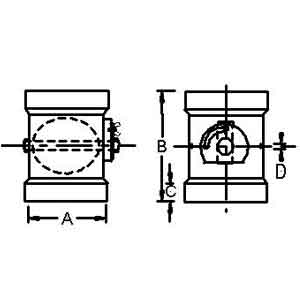

CORZAN® CPVC Duct Butterfly Damper

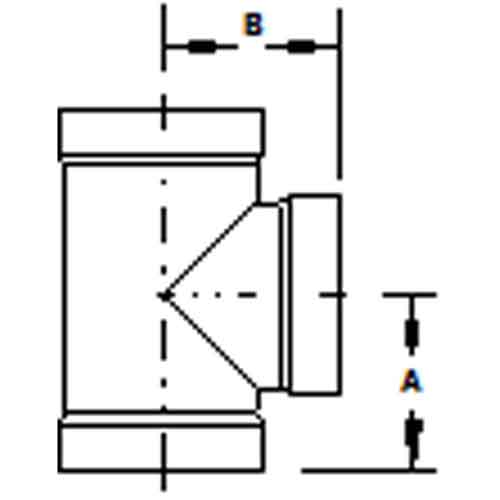

CORZAN® CPVC Duct Tee
CORZAN® CPVC Duct Blastgate
Stainless Steel Pipe Hanger
CORZAN® CPVC Duct Socket Flange SMACNA

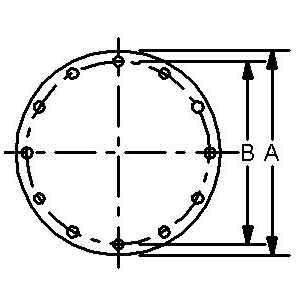

CORZAN® CPVC Duct Blind Flange SMACNA
CORZAN® CPVC Duct 90° Elbow
CORZAN® CPVC Duct 45° Elbow

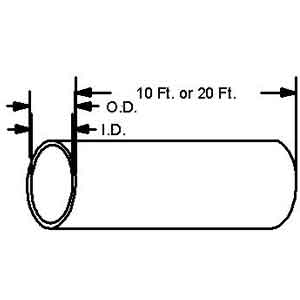

CORZAN® CPVC Duct Pipe
CORZAN® CPVC Duct Style B Rain Cap
CORZAN® CPVC Duct Style A Rain Cap
CORZAN® CPVC Duct Coupling

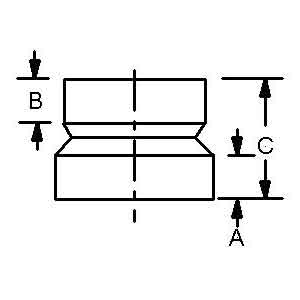

CORZAN® CPVC Duct Reducer Coupling
CORZAN® CPVC Duct True Wye - CORZAN® CPVC Duct 90° Elbow SMACNA
- CORZAN® CPVC Duct 45° Elbow SMACNA
Note: The dimensions shown on this page are essentially shown as "Center to End" dimensions, which apply to both belled end as well as plain end fittings. To determine "take-out" dimensions for belled end fittings, refer to the bell depths to make appropriate calculations. Dimensions are for reference only and subject to change without notice. If specific dimensions are required consult factory.
- Transitions (square to round, rectangular to round) with socket or flanged connections available per customer specifications. Transitions to dis-similar materials also available. Please contact us for pricing.
- Single and Double Lateral Hoods, as well as Rear Exhaust Hoods are also available, fabricated to Harrison standards or to customer requirements.
- Double Lateral Hood: Lengths from 24" to 96", widths from 18" to 66"
- Single Lateral Hood: Lengths from 24" to 18 ft.
- Double Slot Rear Exhaust Hood: Widths from 18" to 72"
- Single Slot Rear Exhaust Hood: Lengths from 18" to 72"
 |
|||

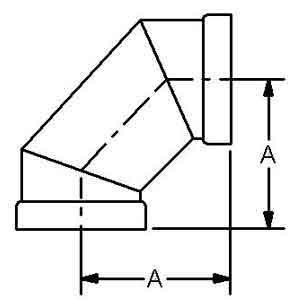

| 90° Elbow | |||
|---|---|---|---|
| Belled (3 piece) | |||
| Dimensions | |||
| Part No. | Size | A | Approx. Wgt (lbs.) |
| 1834-90-02 | 2" | 7.187" | 1 |
| 1834-90-03 | 3" | 9.000" | 2 |
| 1834-90-04 | 4" | 9.250" | 3 |
| 1834-90-06 | 6" | 10.500" | 4 |
| 1834-90-08 | 8" | 11.437" | 6 |
| 1834-90-10 | 10" | 14.750" | 9 |
| 1834-90-12 | 12" | 15.625" | 12 |
| 1834-90-14 | 14" | 15.750" | 14 |
| 1834-905-16 | 16" | 18.000" | 19 |
| 1834-90-18 | 18" | 19.062" | 24 |
| 1834-90-20 | 20" | 21.500" | 33 |
| 1834-90-24 | 24" | 23.500" | 49 |
 |
|||

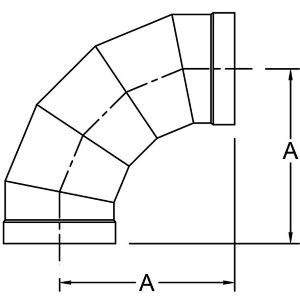

| SMACNA 90° Elbow | |||
|---|---|---|---|
| Belled (5 piece) | |||
| Dimensions | |||
| Part No. | Size | A | Approx. Wgt (lbs.) |
| 1834-905-02 | 2" | 7.187" | 1 |
| 1834-905-03 | 3" | 9.000" | 2 |
| 1834-905-04 | 4" | 9.250" | 3 |
| 1834-905-06 | 6" | 10.500" | 5 |
| 1834-905-08 | 8" | 11.437" | 6 |
| 1834-905-10 | 10" | 14.750" | 8 |
| 1834-905-12 | 12" | 15.625" | 11 |
| 1834-905-14 | 14" | 15.750" | 12 |
| 1834-905-16 | 16" | 18.000" | 18 |
| 1834-905-18 | 18" | 19.062" | 24 |
| 1834-905-20 | 20" | 21.500" | 32 |
| 1834-905-24 | 24" | 23.500" | 41 |
 |
|||

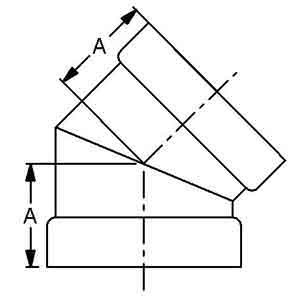

| 45° Elbow | |||
|---|---|---|---|
| Belled (2 piece) | |||
| Dimensions | |||
| Part No. | Size | A | Approx. Wgt (lbs.) |
| 1834-45-02 | 2" | 3.000" | 0.5 |
| 1834-45-03 | 3" | 4.750" | 3 |
| 1834-45-04 | 4" | 4.937" | 2 |
| 1834-45-06 | 6" | 5.375" | 3 |
| 1834-45-08 | 8" | 5.812" | 4 |
| 1834-45-10 | 10" | 6.250" | 5 |
| 1834-45-12 | 12" | 6.625" | 6 |
| 1834-45-14 | 14" | 6.875" | 6 |
| 1834-45-16 | 16" | 7.562" | 9 |
| 1834-45-18 | 18" | 8.000" | 10 |
| 1834-45-20 | 20" | 9.125" | 14 |
| 1834-45-24 | 24" | 10.000" | 21 |
 |
|||
| Cap | |||
|---|---|---|---|
| (Belled) | |||
| Dimensions | |||
| Part No. | Size | A | Approx. Wgt (lbs.) |
| 1834-CA-03 | 3" | 2.000" | 0.5 |
| 1834-CA-04 | 4" | 2.000" | 0.5 |
| 1834-CA-06 | 6" | 2.000" | 1 |
| 1834-CA-08 | 8" | 2.000" | 2 |
| 1834-CA-10 | 10" | 2.000" | 2 |
| 1834-CA-12 | 12" | 2.000" | 3 |
| 1834-CA-14 | 14" | 2.000" | 3 |
| 1834-CA-16 | 16" | 2.000" | 3 |
| 1834-CA-18 | 18" | 2.000" | 4 |
| 1834-CA-20 | 20" | 2.000" | 5 |
| 1834-CA-24 | 24" | 2.000" | 7 |
| Revised Dimension 4-28-11 | |||
 |
||||

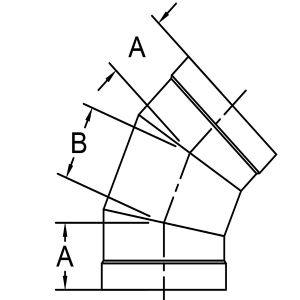

| SMACNA 45° Elbow | ||||
|---|---|---|---|---|
| Belled (3 piece) | ||||
| Dimensions | ||||
| Part No. | Size | A | B | Approx. Wgt (lbs.) |
| 1834-453-02 | 2" | 3.000" | 3.000" | 1 |
| 1834-453-03 | 3" | 4.750" | 3.000" | 1 |
| 1834-453-04 | 4" | 4.937" | 3.000" | 2 |
| 1834-453-06 | 6" | 5.375" | 3.000" | 3 |
| 1834-453-08 | 8" | 5.812" | 3.000" | 3 |
| 1834-453-10 | 10" | 6.250" | 3.000" | 4 |
| 1834-453-12 | 12" | 6.625" | 3.000" | 6 |
| 1834-453-14 | 14" | 6.875" | 3.000" | 7 |
| 1834-453-16 | 16" | 7.562" | 3.000" | 7 |
| 1834-453-18 | 18" | 8.000" | 3.000" | 11 |
| 1834-453-20 | 20" | 9.125" | 3.000" | 15 |
| 1834-453-24 | 24" | 10.000" | 3.000" | 20 |
 |
|||

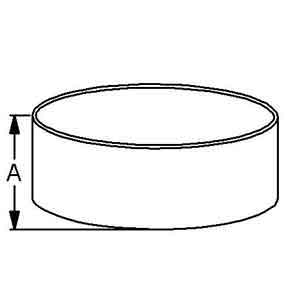

| Coupling | |||
|---|---|---|---|
| (Sleeved) | |||
| Dimensions | |||
| Part No. | Size | A | Approx. Wgt (lbs.) |
| 1834-CP-02 | 2" | 4.000" | 0.5 |
| 1834-CP-03 | 3" | 4.000" | 1 |
| 1834-CP-04 | 4" | 4.000" | 1 |
| 1834-CP-06 | 6" | 4.500" | 1 |
| 1834-CP-08 | 8" | 4.500" | 2 |
| 1834-CP-10 | 10" | 4.500" | 2 |
| 1834-CP-12 | 12" | 4.500" | 2 |
| 1834-CP-14 | 14" | 4.500" | 2.5 |
| 1834-CP-16 | 16" | 4.500" | 3 |
| 1834-CP-18 | 18" | 4.500" | 3 |
| 1834-CP-20 | 20" | 4.500" | 4 |
| 1834-CP-24 | 24" | 4.500" | 5 |
 |
|||||

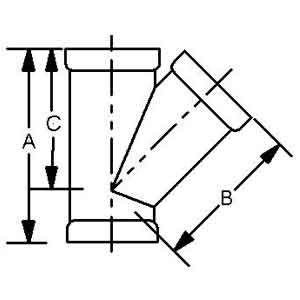

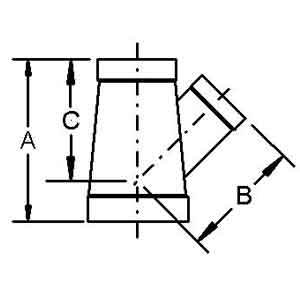

| 45° Wye | |||||
|---|---|---|---|---|---|
| Belled | |||||
| Dimensions | |||||
| Part No. | Size | A | B | C | Approx. Wgt (lbs.) |
| 1834-Y-040302 | 4 x 3 x 2" | 15.000" | 9.125" | 10.875" | 4 |
| 1834-Y-060404 | 6 x 4 x 4" | 15.250" | 9.250" | 11.250" | 5 |
| 1834-Y-080604 | 8 x 6 x 4" | 22.000" | 14.500" | 17.000" | 7 |
| 1834-Y-100806 | 10 x 8 x 6" | 22.250" | 16.375" | 18.625" | 10 |
| 1834-Y-121008 | 12 x 10 x 08" | 24.625" | 17.625" | 19.250" | 14 |
| 1834-Y-141210 | 14 x 12 x 10" | 28.875" | 20.750" | 22.750" | 18 |
| 1834-Y-161412 | 16 x 14 x 12" | 28.750" | 21.000" | 22.375" | 22 |
| 1834-Y-181614 | 18 x 16 x 14" | 34.625" | 26.375" | 29.125" | 28 |
| 1834-Y-201816 | 20 x 18 x 16" | 34.375" | 25.125" | 26.000" | 35 |
| 1834-Y-242018 | 24 x 20 x 18" | 46.000" | 32.750" | 36.000" | 49 |
 |
||||

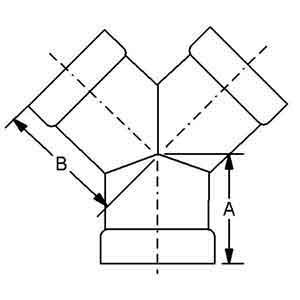

| True Wye | ||||
|---|---|---|---|---|
| Belled | ||||
| Dimensions | ||||
| Part No. | Size | A | B | Approx. Wgt (lbs.) |
| 1834-TY-02 | 2" | 2.750" | 2.375" | 0.5 |
| 1834-TY-03 | 3" | 3.250" | 4.750" | 2 |
| 1834-TY-04 | 4" | 4.000" | 5.250" | 3 |
| 1834-TY-06 | 6" | 4.437" | 6.250" | 3 |
| 1834-TY-08 | 8" | 5.812" | 8.375" | 6 |
| 1834-TY-10 | 10" | 6.250" | 9.500" | 9 |
| 1834-TY-12 | 12" | 6.656" | 10.250" | 11 |
| 1834-TY-14 | 14" | 6.875" | 11.000" | 13 |
| 1834-TY-16 | 16" | 7.312" | 12.000" | 16 |
| 1834-TY-18 | 18" | 7.750" | 13.000" | 23 |
| 1834-TY-20 | 20" | 8.250" | 13.750" | 30 |
| 1834-TY-24 | 24" | 10.750" | 18.000" | 49 |
 |
|||

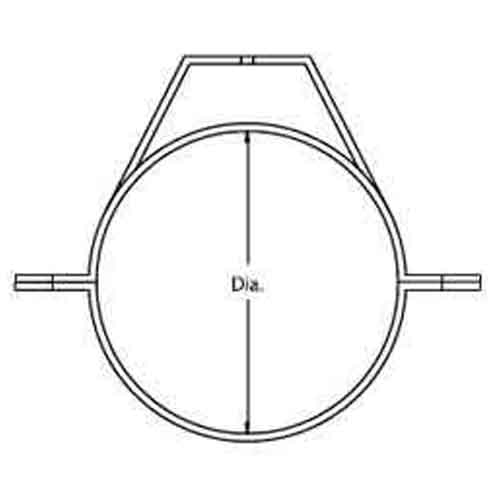

| Pipe Hangers | |||
|---|---|---|---|
| Stainless Steel | |||
| List Prices | |||
| Part No. | Size | Description | List Price |
| PH-04 | 4" | 4" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-06 | 6" | 6" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-08 | 8" | 8" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-10 | 10" | 10" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-12 | 12" | 12" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-14 | 14" | 14" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-16 | 16" | 16" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-18 | 18" | 18" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-20 | 20" | 20" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-24 | 24" | 24" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
 |
||||

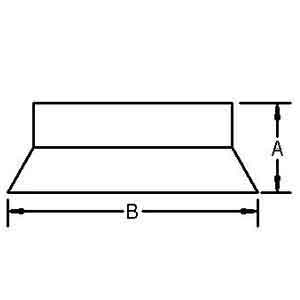

| Rainskirt | ||||
|---|---|---|---|---|
| (Belled) | ||||
| Dimensions | ||||
| Part No. | Size | A | B | Approx. Wgt (lbs.) |
| 1834-RS-02 | 2" | 2.250" | 4.500" | 0.5 |
| 1834-RS-03 | 3" | 2.625" | 5.500" | 1 |
| 1834-RS-04 | 4" | 4.000" | 6.875" | 1 |
| 1834-RS-06 | 6" | 4.000" | 8.875" | 1 |
| 1834-RS-08 | 8" | 4.000" | 11.375" | 2 |
| 1834-RS-10 | 10" | 4.000" | 13.625" | 2 |
| 1834-RS-12 | 12" | 4.000" | 16.250" | 2 |
| 1834-RS-14 | 14" | 4.000" | 17.000" | 2.5 |
| 1834-RS-16 | 16" | 4.000" | 19.000" | 3 |
| 1834-RS-18 | 18" | 6.000" | 22.000" | 3 |
| 1834-RS-20 | 20" | 6.000" | 23.625 | 5 |
| 1834-RS-24 | 24" | 8.000" | 27.000" | 9 |
 |
||||

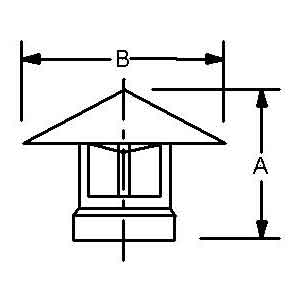

| Rain Cap (Style "A") | ||||
|---|---|---|---|---|
| (Belled) | ||||
| Dimensions | ||||
| Part No. | Size | A | B | Approx. Wgt (lbs.) |
| 1834-WCA-02 | 2" | 8.000" | 4.000" | 1 |
| 1834-WCA-03 | 3" | 8.500" | 6.000" | 2 |
| 1834-WCA-04 | 4" | 9.000" | 8.000" | 2 |
| 1834-WCA-06 | 6" | 10.500" | 12.000" | 3 |
| 1834-WCA-08 | 8" | 12.250" | 16.000" | 5 |
| 1834-WCA-10 | 10" | 13.500" | 20.000" | 7 |
| 1834-WCA-12 | 12" | 15.250" | 23.000" | 10 |
| 1834-WCA-14 | 14" | 16.000" | 28.000" | 13 |
| 1834-WCA-16 | 16" | 16.750" | 32.000" | 16 |
| 1834-WCA-18 | 18" | 17.500" | 36.000" | 21 |
| 1834-WCA-20 | 20" | 18.500" | 40.000" | 26 |
| 1834-WCA-24 | 24" | 19.000" | 44.000" | 33 |
 |
||||

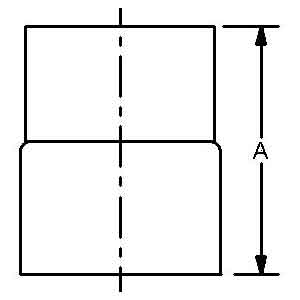

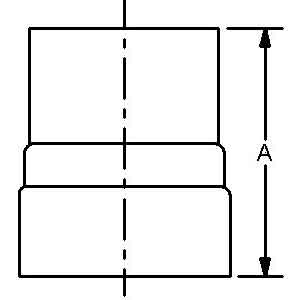

| Flex Hose Adapter | ||||
|---|---|---|---|---|
| Hose Spigot x Duct Bell | ||||
| Dimensions | ||||
| Part No. | Size | Bell | A | Approx. Wgt (lbs.) |
| O.D. (Hose) |
Socket (Duct) |
|||
| 1834-FHA-02 | 2" | 2.375" | 5.500" | 0.5 |
| 1834-FHA-03 | 3" | 3.500" | 6.000" | 1 |
| 1834-FHA-04 | 4" | 4.500" | 7.000" | 1.5 |
| 1834-FHA-06 | 6" | 6.625" | 7.500" | 2 |
| 1834-FHA-08 | 8" | 8.625" | 9.000" | 3 |
| 1834-FHA-10 | 10" | 10.750" | 9.000" | 4 |
| 1834-FHA-12 | 12" | 12.750" | 9.000" | 4 |
| 1834-FHA-14 | 14" | 14.000" | 8.000" | 4 |
| 1834-FHA-16 | 16" | 16.000" | 8.000" | 4.5 |
| 1834-FHA-18 | 18" | 18.000" | 8.000" | 5 |
 |
|||||
| Blastgate | |||||
|---|---|---|---|---|---|
| (Belled) | |||||
| Dimensions | |||||
| Part No. | Size | A | B | C | Approx. Wgt (lbs.) |
| 1834-BG-02 | 2" | 6.000" | 3.750" | 1.000" | 1 |
| 1834-BG-03 | 3" | 7.000" | 4.880" | 3.250" | 2 |
| 1834-BG-04 | 4" | 8.000" | 5.560" | 3.250" | 3 |
| 1834-BG-06 | 6" | 11.000" | 8.880" | 5.000" | 4 |
| 1834-BG-08 | 8" | 14.000" | 10.250" | 4.000" | 6 |
| 1834-BG-10 | 10" | 17.000" | 12.380" | 4.500" | 8 |
| 1834-BG-12 | 12" | 20.000" | 13.880" | 4.500" | 11 |
| 1834-BG-14 | 14" | 21.750" | 15.500" | 4.500" | 11 |
| 1834-BG-16 | 16" | 23.000" | 17.500" | 4.250" | 15 |
| 1834-BG-18 | 18" | 28.000" | 19.500" | 4.250" | 20 |
| 1834-BG-20 | 20" | 30.750" | 21.500" | 5.750" | 27 |
| 1834-BG-24 | 24" | 34.000" | 25.500" | 5.750" | 31 |
| Gate is 3/16" thick material | |||||
 |

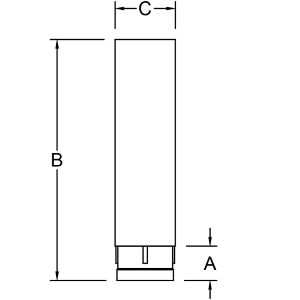

|||||
| Rain Cap (Style "B") | |||||
|---|---|---|---|---|---|
| Zero Pressure Loss Feature | |||||
| (Belled) | |||||
| Dimensions | |||||
| Part No. | Size | A | B | C | Approx. Wgt (lbs.) |
| 1834-WCB-02 | 2" | 6.000" | 8.000" | 3.500" | 2 |
| 1834-WCB-03 | 3" | 6.000" | 12.000" | 4.500" | 4 |
| 1834-WCB-04 | 4" | 6.000" | 16.000" | 6.625" | 6 |
| 1834-WCB-06 | 6" | 8.000" | 24.000" | 8.625" | 10 |
| 1834-WCB-08 | 8" | 8.000" | 32.000" | 10.750" | 15 |
| 1834-WCB-10 | 10" | 8.000" | 40.000" | 12.750" | 22 |
| 1834-WCB-12 | 12" | 8.000" | 48.000" | 14.000" | 28 |
| 1834-WCB-14 | 14" | 8.000" | 56.000" | 16.000" | 36 |
| 1834-WCB-16 | 16" | 8.000" | 64.000" | 18.000" | 48 |
| 1834-WCB-18 | 18" | 10.000" | 72.000" | 20.000" | 65 |
| 1834-WCB-20 | 20" | 10.000" | 80.000" | 22.000" | 71 |
| 1834-WCB-24 | 24" | 12.000" | 96.000" | 26.000" | 102 |
 |
|||||||

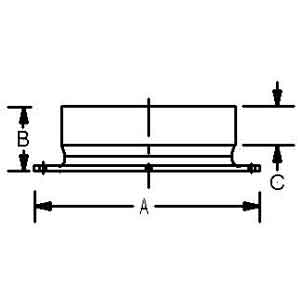

| Flange | |||||||
|---|---|---|---|---|---|---|---|
| (Socket/Belled) | |||||||
| Dimensions | |||||||
| Part No. | Size | A | B | C | Bolt Circle | # of Bolt Holes | Approx. Wgt (lbs.) |
| 1834-SF-02 | 2" | 6.000" | 2.750" | 1.500" | 5.000" | 4 | 0.75 |
| 1834-SF-03 | 3" | 6.625" | 3.250" | 1.750" | 6.000" | 4 | 1 |
| 1834-SF-04 | 4" | 8.000" | 3.625" | 2.000" | 6.500" | 6 | 1 |
| 1834-SF-06 | 6" | 10.000" | 4.000" | 2.000" | 8.500" | 8 | 2 |
| 1834-SF-08 | 8" | 12.000" | 4.000" | 2.250" | 10.500" | 10 | 2 |
| 1834-SF-10 | 10" | 14.000" | 4.000" | 2.500" | 12.500" | 12 | 3 |
| 1834-SF-12 | 12" | 16.000" | 4.000" | 2.500" | 14.500" | 14 | 3 |
| 1834-SF-14 | 14" | 18.000" | 4.000" | 2.500" | 16.500" | 16 | 3 |
| 1834-SF-16 | 16" | 20.000" | 4.000" | 2.500" | 18.500" | 18 | 5 |
| 1834-SF-18 | 18" | 22.000" | 4.000" | 2.500" | 20.500" | 20 | 5 |
| 1834-SF-20 | 20" | 24.000 | 4.000 | 3.000 | 22.500 | 22 | 7 |
| 1834-SF-24 | 24" | 28.000" | 4.000" | 3.000" | 26.500" | 24 | 9 |
| Undrilled flanges also available. | |||||||
| Flanges with 150# drilling available on a custom basis. | |||||||
| All flanges are 3/16" thick material. | |||||||
| All bolt holes are 5/16" diameter. | |||||||
 |
||||||

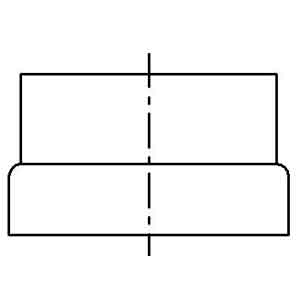

| Bell (Socket) | ||||||
|---|---|---|---|---|---|---|
| Dimensions | ||||||
| Size | Socket Depth | |||||
| 2" | 1.500" | |||||
| 3" | 1.750" | |||||
| 4" | 2.000" | |||||
| 6" | 2.000" | |||||
| 8" | 2.250" | |||||
| 10" | 2.500" | |||||
| 12" | 2.500" | |||||
| 14" | 2.500" | |||||
| 16" | 2.500" | |||||
| 18" | 2.500" | |||||
| 20" | 3.000" | |||||
| 24" | 3.000" | |||||
 |
||||
| Flex Hose Adapter | ||||
|---|---|---|---|---|
| Hose Spigot x Duct Spigot | ||||
| Dimensions | ||||
| Part No. | Size | Spigot | A | Approx. Wgt (lbs.) |
| O.D. (Hose) |
P.E. (Duct) |
|||
| 1833-FHA-02 | 2" | 2.375" | 5.500" | 1 |
| 1833-FHA-03 | 3" | 3.500" | 6.000" | 1 |
| 1833-FHA-04 | 4" | 4.500" | 7.000" | 1.5 |
| 1833-FHA-06 | 6" | 6.625" | 7.500" | 2 |
| 1833-FHA-08 | 8" | 8.625" | 9.000" | 3 |
| 1833-FHA-10 | 10" | 10.750" | 9.000" | 4 |
| 1833-FHA-12 | 12" | 12.750" | 9.000" | 4 |
| 1833-FHA-14 | 14" | 14.000" | 8.000" | 4 |
| 1833-FHA-16 | 16" | 16.000" | 8.000" | 4.5 |
| 1833-FHA-18 | 18" | 18.000" | 8.000" | 5 |
 |
|||||
| Blind Flange | |||||
|---|---|---|---|---|---|
| Dimensions | |||||
| Part No. | Size | A | B | # of Bolt Holes | Approx. Wgt (lbs.) |
| 1834-BF-02 | 2" | 6.000" | 5.000" | 4 | 0.5 |
| 1834-BF-03 | 3" | 7.500" | 6.000" | 4 | 0.5 |
| 1834-BF-04 | 4" | 8.000" | 6.500" | 6 | 0.5 |
| 1834-BF-06 | 6" | 10.000" | 8.500" | 8 | 1 |
| 1834-BF-08 | 8" | 12.000" | 10.500" | 10 | 2 |
| 1834-BF-10 | 10" | 14.000" | 12.500" | 12 | 2.5 |
| 1834-BF-12 | 12" | 16.000" | 14.500" | 14 | 3.5 |
| 1834-BF-14 | 14" | 18.000" | 16.500" | 16 | 4 |
| 1834-BF-16 | 16" | 20.000" | 18.500" | 18 | 4.5 |
| 1834-BF-18 | 18" | 22.000" | 20.500" | 20 | 6.5 |
| 1834-BF-20 | 20" | 24.000" | 22.500" | 22 | 8 |
| 1834-BF-24 | 24" | 28.000" | 26.500" | 24 | 10 |
| All flanges are 3/16" thick material. | |||||
| All bolt holes are 5/16" diameter. | |||||
 |
|||||
| Reducer Coupling | |||||
|---|---|---|---|---|---|
| (One Step) Bell x Bell | |||||
| Dimensions | |||||
| Part No. | Size | A | B | C | Approx. Wgt (lbs.) |
| 1834-RC-0403 | 4 x 3" | 1.750" | 1.750" | 7.000" | 1 |
| 1834-RC-0604 | 6 x 4" | 2.000" | 1.750" | 7.000" | 2 |
| 1834-RC-0806 | 8 x 6" | 2.250" | 2.000" | 8.000" | 2 |
| 1834-RC-1008 | 10 x 8" | 2.500" | 2.000" | 8.000" | 3 |
| 1834-RC-1210 | 12 x 10" | 2.500" | 2.500" | 8.000" | 4 |
| 1834-RC-1412 | 14 x 12" | 2.500" | 2.500" | 7.250" | 4 |
| 1834-RC-1614 | 16 x 14" | 2.500" | 2.500" | 9.000" | 5 |
| 1834-RC-1816 | 18 x 16" | 2.500" | 2.500" | 8.250" | 5 |
| (Two Step) Bell x Bell | |||||
| 1834-RC-0804 | 8 x 4" | 2.250" | 1.750" | 12.500" | 4 |
| 1834-RC-1006 | 10 x 6" | 2.500" | 2.000" | 12.750" | 5 |
| 1834-RC-1208 | 12 x 8" | 2.500" | 2.250" | 13.250" | 7 |
| 1834-RC-1410 | 14 x 10" | 2.500" | 2.500" | 12.500" | 7 |
| 1834-RC-1612 | 16 x 12" | 2.500" | 2.500" | 13.500" | 9 |
| 1834-RC-1814 | 18 x 14" | 2.500" | 2.500" | 14.500" | 10 |
| Rolled reducers also available | |||||
 |
|||||
| 45° Wye | |||||
|---|---|---|---|---|---|
| Belled | |||||
| Dimensions | |||||
| Part No. | Size | A | B | C | Approx. Wgt (lbs.) |
| 1834-Y-0604 | 6 x 6 x 4" | 15.875" | 10.750" | 11.750" | 5 |
| 1834-Y-06 | 6 x 6 x 6" | 18.875" | 13.250" | 13.250" | 6 |
| 1834-Y-0804 | 8 x 8 x 4" | 16.375" | 12.250" | 13.062" | 6 |
| 1834-Y-0806 | 8 x 8 x 6" | 19.375" | 13.312" | 14.500" | 7 |
| 1834-Y-08 | 8 x 8 x 8" | 22.187" | 15.875" | 15.875" | 9 |
| 1834-Y-1006 | 10 x 10 x 6" | 20.375" | 15.312" | 16.250" | 9 |
| 1834-Y-1008 | 10 x 10 x 8" | 23.187" | 16.312" | 17.750" | 11 |
| 1834-Y-10 | 10 x 10 x 10" | 26.250" | 19.312" | 19.312" | 13 |
| 1834-Y-1208 | 12 x 12 x 08" | 23.312" | 17.750" | 18.750" | 13 |
| 1834-Y-1210 | 12 x 12 x 10" | 26.375" | 18.750" | 20.250" | 15 |
| 1834-Y-12 | 12 x 12 x 12" | 29.250" | 21.687" | 21.687" | 17 |
| 1834-Y-1410 | 14 x 14 x 10" | 26.250" | 19.625" | 20.875" | 16 |
| 1834-Y-1412 | 14 x 14 x 12" | 29.000" | 20.750" | 22.250" | 19 |
| 1834-Y-14 | 14 x 14 x 14" | 30.750" | 23.125" | 23.125" | 20 |
| 1834-Y-1612 | 16 x 16 x 12" | 29.000" | 22.125" | 23.375" | 21 |
| 1834-Y-1614 | 16 x 16 x 14" | 30.750" | 22.750" | 24.250" | 23 |
| 1834-Y-16 | 16 x 16 x 16" | 33.625" | 25.625" | 25.625" | 25 |
| 1834-Y-1814 | 18 x 18 x 14" | 31.250" | 24.250" | 25.375" | 26 |
| 1834-Y-1816 | 18 x 18 x 16" | 34.125" | 25.375" | 26.875" | 30 |
| 1834-Y-18 | 18 x 18 x 18" | 37.000" | 28.250" | 28.250" | 34 |
| 1834-Y-20 | 20 x 20 x 20" | 40.750" | 31.125" | 31.125" | 45 |
| 1834-Y-2418 | 24 x 24 x 18" | 38.000" | 30.750" | 31.750" | 49 |
| 1834-Y-24 | 24 x 24 x 24" | 46.500" | 36.000" | 36.000" | 71 |
 |
||||||
| CPVC | ||||||
|---|---|---|---|---|---|---|
| (Duct/Pipe) | ||||||
| Dimensions | ||||||
| Part No. | Size | (O.D.) | (I.D.) | Wall | Approx. Wgt/Ft (lbs.) | Std. Length |
| Extruded | ||||||
| 1833-PP-02 | 2" | 2.375" | 2.047" | 0.154" | 0.803 | 10 ft. or 20 ft. |
| 1833-PP-03 | 3" | 3.500" | 3.042" | 0.216" | 1.660 | 10 ft. or 20 ft. |
| 1833-PP-04 | 4" | 4.500" | 3.998" | 0.237" | 2.363 | 10 ft. or 20 ft. |
| 1833-PP-06 | 6" | 6.625" | 6.250" | 0.187" | 2.555 | 10 ft. or 20 ft. |
| 1833-PP-08 | 8" | 8.625" | 8.250" | 0.187" | 3.349 | 10 ft. or 20 ft. |
| 1833-PP-10 | 10" | 10.750" | 10.380" | 0.187" | 4.192 | 10 ft. or 20 ft. |
| 1833-PP-12 | 12" | 12.750" | 12.380" | 0.187" | 4.986 | 10 ft. or 20 ft. |
| 1833-PP-14 | 14" | 14.000" | 13.630" | 0.187" | 5.485 | 10 ft. or 20 ft. |
| 1833-PP-16 | 16" | 16.000" | 15.630" | 0.187" | 6.273 | 10 ft. or 20 ft. |
| 1833-PP-18 | 18" | 18.000" | 17.630" | 0.187" | 7.580 | 10 ft. or 20 ft. |
| 1833-PP-20 | 20" | 20.000" | 19.500" | 0.219" | 9.146 | 10 ft. or 20 ft. |
| 1833-PP-24 | 24" | 24.000" | 23.500" | 0.250" | 12.536 | 10 ft. or 20 ft. |
| Rolled | ||||||
| 1834-PP4-22 | 22" | 22.000" | 21.626" | 0.187" | 9.88 | 4 ft. w/Coupling |
| 1834-PP4-26 | 26" | 26.000" | 25.626" | 0.187" | 11.67 | 4 ft. w/Coupling |
| 1834-PP4-28 | 28" | 28.000" | 27.626" | 0.187" | 12.56 | 4 ft. w/Coupling |
| 1834-PP4-30 | 30" | 30.000" | 29.626" | 0.187" | 13.46 | 4 ft. w/Coupling |
| Duct diameters thru 60" all available. Contact factory for details. | ||||||
 |
||||
| Tee | ||||
|---|---|---|---|---|
| Belled | ||||
| Dimensions | ||||
| Part No. | Size | A | B | Approx. Wgt (lbs.) |
| 1834-T-0604 | 6 x 6 x 4" | 7.312" | 6.500" | 4 |
| 1834-T-06 | 6 x 6 x 6" | 7.562" | 7.562" | 4 |
| 1834-T-0804 | 8 x 8 x 4" | 8.312" | 6.750" | 5 |
| 1834-T-0806 | 8 x 8 x 6" | 8.562" | 7.812" | 5 |
| 1834-T-08 | 8 x 8 x 8" | 8.812" | 8.812" | 6 |
| 1834-T-1006 | 10 x 10 x 6" | 9.625" | 8.062" | 7 |
| 1834-T-1008 | 10 x 10 x 8" | 9.875" | 9.062" | 8.5 |
| 1834-T-10 | 10 x 10 x 10" | 10.125" | 10.125" | 10.5 |
| 1834-T-1208 | 12 x 12 x 08" | 10.875" | 9.062" | 9.5 |
| 1834-T-1210 | 12 x 12 x 10" | 11.125" | 10.125" | 11.5 |
| 1834-T-12 | 12 x 12 x 12" | 11.125" | 11.125" | 12 |
| 1834-T-1410 | 14 x 14 x 10" | 11.750" | 10.125" | 12 |
| 1834-T-1412 | 14 x 14 x 12" | 11.750" | 11.125" | 14.5 |
| 1834-T-14 | 14 x 14 x 14" | 11.750" | 11.750" | 16 |
| 1834-T-1612 | 16 x 16 x 12" | 12.750" | 11.125" | 15.5 |
| 1834-T-1614 | 16 x 16 x 14" | 12.750" | 11.750" | 17 |
| 1834-T-16 | 16 x 16 x 16" | 12.750" | 12.750" | 20 |
| 1834-T-1814 | 18 x 18 x 14" | 13.750" | 12.000" | 19.5 |
| 1834-T-1816 | 18 x 18 x 16" | 13.750" | 13.000" | 22 |
| 1834-T-18 | 18 x 18 x 18" | 14.000" | 14.000" | 26.5 |
| 1834-T-20 | 20 x 20 x 20" | 15.500" | 15.500" | 35 |
| 1834-T-2418 | 24 x 24 x 18" | 17.000" | 14.500" | 37 |
| 1834-T-24 | 24 x 24 x 24" | 17.500" | 17.500" | 55 |
 |
||||||
| Butterfly Damper | ||||||
|---|---|---|---|---|---|---|
| (Belled) | ||||||
| Dimensions | ||||||
| Part No. | Size | A | B | C | D | Approx. Wgt (lbs.) |
| 1834-BD-02 | 2" | 2.375" | 6.750" | 1.500" | .187" | 1 |
| 1834-BD-03 | 3" | 3.500" | 8.750" | 1.750" | .187" | 2 |
| 1834-BD-04 | 4" | 4.500" | 9.500" | 2.000" | .187" | 3 |
| 1834-BD-06 | 6" | 6.625" | 9.500" | 2.000" | .187" | 4 |
| 1834-BD-08 | 8" | 8.625" | 10.500" | 2.250" | .187" | 5 |
| 1834-BD-10 | 10" | 10.750" | 11.750" | 2.500" | .187" | 6 |
| 1834-BD-12 | 12" | 12.750" | 12.750" | 2.500" | .187" | 8 |
| 1834-BD-14 | 14" | 14.000" | 13.750" | 2.500" | .187" | 10 |
| 1834-BD-16 | 16" | 16.000" | 15.750" | 2.500" | .187" | 11 |
| 1834-BD-18 | 18" | 18.000" | 17.750" | 2.500" | .250" | 15 |
| 1834-BD-20 | 20" | 20.000" | 19.750" | 3.000" | .250" | 20 |
| 1834-BD-24 | 24" | 24.000" | 23.750" | 3.000" | .250" | 31 |
| Features and Benefits | ||||||
| Locking hardware: stainless steel | ||||||
| All plastic internal parts | ||||||
| Available with belled socket, flanged or spigot ends | ||||||
| Optional electric motor actuated | ||||||
| Furnished with locking quadrant allowing for permanent position set | ||||||
| Allows for less than 5% air-flow restiction | ||||||
| Offers an approximate 95% seal | ||||||
| Optional positive seal shaft & damper plate | ||||||
| 90° damper plate operation | ||||||
| Can be installed either vertically or horizontally | ||||||
