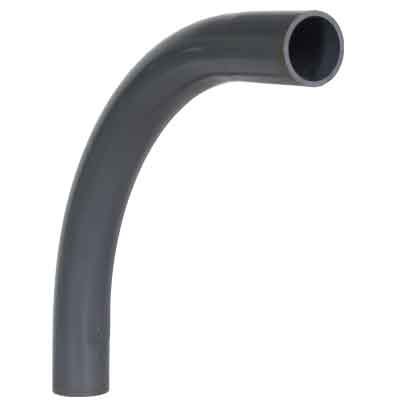

LONG RADIUS ELBOWS
PVC, CPVC, CLEAR PVC Materials Available
Harrison Machine & Plastic will fabricate your 11 1/4°, 22 1/2°, 45°, and 90°
long raidus elbows from PVC & CPVC Schedule 40 & Schedule 80 materials.

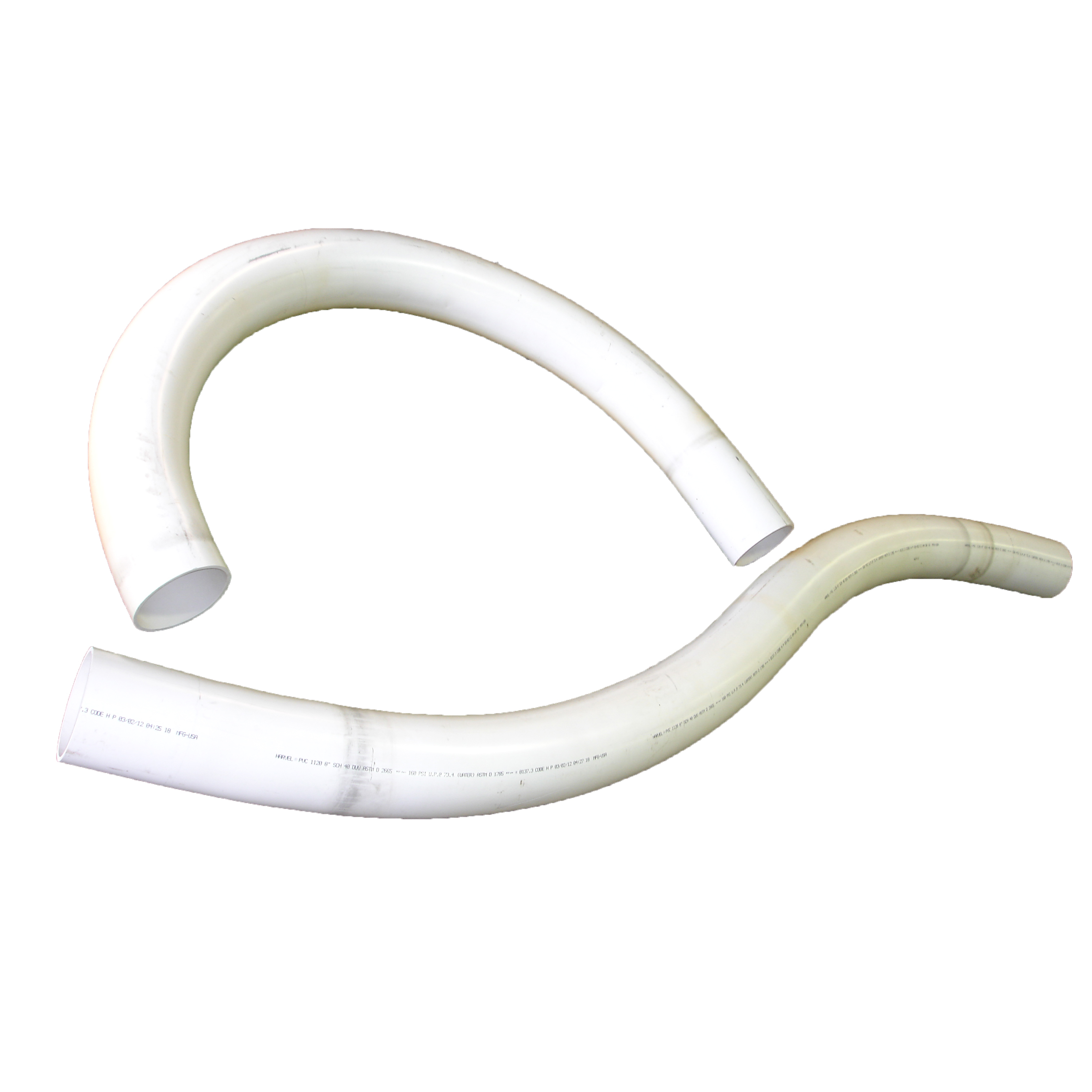

Custom long radius elbows available per customer specifications
Long radius elbow size diameter up to 14" and centerline radius thru 48". Victaulic grooved
ends, plain end, or belled socket end elbows available upon request.
 |
| 90° Long Radius Elbow |
| Schedule 40 |
| 2" |
481-0212 |
$114.21 |
12" |
| 3" |
481-0315 |
$131.50 |
15" |
| 4" |
481-0416 |
$164.19 |
16" |
| 6" |
481-0624 |
$321.59 |
24" |
| 8" |
481-0828 |
$563.94 |
28" |
| 10" |
481-1048 |
$969.18 |
48" |
| 12" |
481-1242 |
$1,297.46 |
42" |
 |

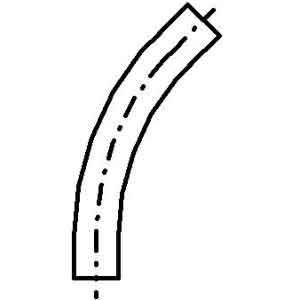

| 45° Long Radius Elbow |
| Schedule 40 |
| 2" |
482-0212 |
$111.30 |
12" |
| 3" |
482-0315 |
$124.20 |
15" |
| 4" |
482-0416 |
$138.70 |
16" |
| 6" |
482-0624 |
$290.92 |
24" |
| 8" |
482-0828 |
$401.23 |
28" |
| 10" |
482-1048 |
$827.77 |
48" |
| 12" |
482-1242 |
$925.83 |
42" |
 |
| 30° Long Radius Elbow |
| Schedule 40 |
| 2" |
483-0212 |
$111.30 |
12" |
| 3" |
483-0315 |
$138.70 |
15" |
| 4" |
483-0416 |
$150.88 |
16" |
| 6" |
483-0624 |
$358.11 |
24" |
| 8" |
483-0828 |
$369.22 |
28" |
| 10" |
483-1048 |
$889.17 |
48" |
| 12" |
483-1242 |
$925.83 |
42" |
|
| 22 1/2° Long Radius Elbow |
| Schedule 40 |
| 2" |
484-0212 |
$110.13 |
12" |
| 3" |
484-0315 |
$121.76 |
15" |
| 4" |
484-0416 |
$150.88 |
16" |
| 6" |
484-0624 |
$275.59 |
24" |
| 8" |
484-0828 |
$369.22 |
28" |
| 10" |
484-1048 |
$827.77 |
48" |
| 12" |
484-1242 |
$826.02 |
42" |
|
| 90° Long Radius Elbows |
| Schedule 80 |
| FULL PRESSURE |
| 2" |
881-0212 |
$120.56 |
12" |
| 3" |
881-0315 |
$146.83 |
15" |
| 4" |
881-0416 |
$191.46 |
16" |
| 6" |
881-0624 |
$382.40 |
24" |
| 8" |
881-0828 |
$650.82 |
28" |
| 10" |
881-1048 |
$1,186.12 |
48" |
| 12" |
881-1242 |
$1,537.89 |
42" |
|
| 45° Long Radius Elbows |
| Schedule 80 |
| FULL PRESSURE |
| 2" |
882-0212 |
$116.03 |
12" |
| 3" |
882-0315 |
$135.62 |
15" |
| 4" |
882-0416 |
$160.82 |
16" |
| 6" |
882-0624 |
$335.64 |
24" |
| 8" |
882-0828 |
$468.24 |
28" |
| 10" |
882-1048 |
$971.76 |
48" |
| 12" |
882-1242 |
$1,087.72 |
42" |
|
| 30° Long Radius Elbows |
| Schedule 80 |
| FULL PRESSURE |
| 2" |
883-0212 |
$158.80 |
12" |
| 3" |
883-0315 |
$158.80 |
15" |
| 4" |
883-0416 |
$169.91 |
16" |
| 6" |
883-0624 |
$400.26 |
24" |
| 8" |
883-0828 |
$421.37 |
28" |
| 10" |
883-1048 |
$1,078.83 |
48" |
| 12" |
883-1242 |
$1,087.72 |
42" |
|
| 22 1/2° Long Radius Elbows |
| Schedule 80 |
| FULL PRESSURE |
| 2" |
884-0212 |
$114.21 |
12" |
| 3" |
884-0315 |
$131.88 |
15" |
| 4" |
884-0416 |
$142.99 |
16" |
| 6" |
884-0624 |
$312.26 |
24" |
| 8" |
884-0828 |
$421.37 |
28" |
| 10" |
884-1048 |
$889.51 |
48" |
| 12" |
884-1242 |
$945.07 |
42" |
