HARRISON SUPERDUCT® PVC DUCT PIPE & FITTINGS
DIMENSIONS
Printable
HARRISON SUPERDUCT® Pipe & Fitting Dimensions
Click here for printable pdf
PVC DUCT FITTINGS & PIPE
HARRISON SUPERDUCT® PVC Duct Reducer Coupling
HARRISON SUPERDUCT® PVC Duct Butterfly Damper
HARRISON SUPERDUCT® PVC Duct Style B Rain Cap
PVC Duct Flexible Duct
HARRISON SUPERDUCT® PVC Duct Style A Rain Cap
HARRISON SUPERDUCT® PVC Duct Wye
HARRISON SUPERDUCT® PVC Duct True Wye
HARRISON SUPERDUCT® PVC Duct Blastgate
PVC Flexible Coupling
HARRISON SUPERDUCT® PVC Duct Flex Hose Adapter (Socket)
See Transition Guide Here***
Roof Flashing

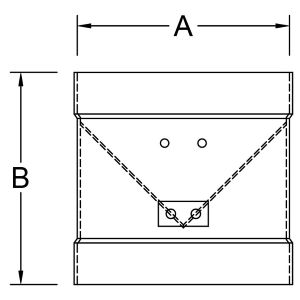

HARRISON SUPERDUCT® PVC Duct Vertical Backdraft Damper
HARRISON SUPERDUCT® PVC Duct Socket Flange SMACNA
HARRISON SUPERDUCT® PVC Duct 90° Elbow SMACNA
- HARRISON SUPERDUCT® PVC Duct 90° Elbow
HARRISON SUPERDUCT® PVC Duct 45° Elbow
HARRISON SUPERDUCT® PVC Duct Rainskirt
HARRISON SUPERDUCT® PVC Duct Coupling
HARRISON SUPERDUCT® PVC Duct Tee
HARRISON SUPERDUCT® PVC Duct Cap
PVC Rear Exhaust Hood
HARRISON SUPERDUCT® PVC Duct Flex Hose Adapter (Spigot)
HARRISON SUPERDUCT® PVC Duct Actuated Butterfly Damper
Stainless Steel Pipe Hanger
HARRISON SUPERDUCT® PVC Duct Pipe- HARRISON SUPERDUCT® ANSI 150# DRILLING PVC Duct Flange
- HARRISON SUPERDUCT® PVC Duct 45° Elbow SMACNA
PVC Duct Blind Flange
Note: The dimensions shown on this page are essentially shown as "Center to End" dimensions, which apply to both belled end as well as plain end fittings. To determine "take-out" dimensions for belled end fittings, refer to the bell depths to make appropriate calculations. Dimensions are for reference only and subject to change without notice. If specific dimensions are required consult factory.
- Transitions (square to round, rectangular to round) with socket or flanged connections available per customer specifications. Transitions to dis-similar materials also available. Please contact us for pricing.
 |
|||
| 90° Elbow | |||
|---|---|---|---|
| Belled (3 piece) | |||
| Dimensions | |||
| Part No. | Size | A | Approx. Wgt (lbs.) |
| 1034-90-02 | 2" | 7.187" | 1 |
| 1034-90-03 | 3" | 9.000" | 2 |
| 1034-90-04 | 4" | 9.250" | 3 |
| 1034-90-05 | 5" | 9.937" | 5 |
| 1034-90-06 | 6" | 10.500" | 5 |
| 1034-90-07 | 7" | 10.875" | 5 |
| 1034-90-08 | 8" | 11.437" | 6 |
| 1034-90-09 | 9" | 11.875" | 6 |
| 1034-90-10 | 10" | 14.750" | 8 |
| 1034-90-11 | 11" | 14.937" | 9 |
| 1034-90-12 | 12" | 15.625" | 11 |
| 1034-90-14 | 14" | 15.750" | 12 |
| 1034-90-16 | 16" | 18.000" | 18 |
| 1034-90-18 | 18" | 19.062" | 24 |
| 1034-90-20 | 20" | 21.500" | 32 |
| 1034-90-24 | 24" | 23.500" | 41 |
 |
|||
| SMACNA 90° Elbow | |||
|---|---|---|---|
| Belled (5 piece) | |||
| Dimensions | |||
| Part No. | Size | A | Approx. Wgt (lbs.) |
| 1034-90-02 | 2" | 7.187" | 1 |
| 1034-90-03 | 3" | 9.000" | 2 |
| 1034-90-04 | 4" | 9.250" | 3 |
| 1034-90-05 | 5" | 9.937" | 5 |
| 1034-90-06 | 6" | 10.500" | 5 |
| 1034-90-07 | 7" | 10.875" | 5 |
| 1034-90-08 | 8" | 11.437" | 6 |
| 1034-90-09 | 9" | 11.875" | 6 |
| 1034-90-10 | 10" | 14.750" | 8 |
| 1034-90-11 | 11" | 14.937" | 9 |
| 1034-90-12 | 12" | 15.625" | 11 |
| 1034-90-14 | 14" | 15.750" | 12 |
| 1034-90-16 | 16" | 18.000" | 18 |
| 1034-90-18 | 18" | 19.062" | 24 |
| 1034-90-20 | 20" | 21.500" | 32 |
| 1034-90-24 | 24" | 23.500" | 41 |
 |
|||
| 45° Elbow | |||
|---|---|---|---|
| Belled (2 piece) | |||
| Dimensions | |||
| Part No. | Size | A | Approx. Wgt (lbs.) |
| 1034-45-02 | 2" | 3.000" | 1 |
| 1034-45-03 | 3" | 4.750" | 1 |
| 1034-45-04 | 4" | 4.937" | 2 |
| 1034-45-05 | 5" | 5.156" | 3 |
| 1034-45-06 | 6" | 5.375" | 3 |
| 1034-45-07 | 7" | 5.500" | 3 |
| 1034-45-08 | 8" | 5.812" | 3 |
| 1034-45-09 | 9" | 6.000" | 4 |
| 1034-45-10 | 10" | 6.250" | 4 |
| 1034-45-11 | 11" | 6.375" | 5 |
| 1034-45-12 | 12" | 6.625" | 6 |
| 1034-45-14 | 14" | 6.875" | 7 |
| 1034-45-16 | 16" | 7.562" | 7 |
| 1034-45-18 | 18" | 8.000" | 11 |
| 1034-45-20 | 20" | 9.125" | 15 |
| 1034-45-24 | 24" | 10.000" | 20 |
 |
||||
| SMACNA 45° Elbow | ||||
|---|---|---|---|---|
| Belled (3 piece) | ||||
| Dimensions | ||||
| Part No. | Size | A | B | Approx. Wgt (lbs.) |
| 1034-453-02 | 2" | 3.000" | 3.000" | 1 |
| 1034-453-03 | 3" | 4.750" | 3.000" | 1 |
| 1034-453-04 | 4" | 4.937" | 3.000" | 2 |
| 1034-453-05 | 5" | 5.156" | 3.000" | 3 |
| 1034-453-06 | 6" | 5.375" | 3.000" | 3 |
| 1034-453-07 | 7" | 5.500" | 3.000" | 3 |
| 1034-453-08 | 8" | 5.812" | 3.000" | 3 |
| 1034-453-09 | 9" | 6.000" | 3.000" | 4 |
| 1034-453-10 | 10" | 6.250" | 3.000" | 4 |
| 1034-453-11 | 11" | 6.375" | 3.000" | 5 |
| 1034-453-12 | 12" | 6.625" | 3.000" | 6 |
| 1034-453-14 | 14" | 6.875" | 3.000" | 7 |
| 1034-453-16 | 16" | 7.562" | 3.000" | 7 |
| 1034-453-18 | 18" | 8.000" | 3.000" | 11 |
| 1034-453-20 | 20" | 9.125" | 3.000" | 15 |
| 1034-453-24 | 24" | 10.000" | 3.000" | 20 |
 |
|||
| Coupling | |||
|---|---|---|---|
| (Sleeved) | |||
| Dimensions | |||
| Part No. | Size | A | Approx. Wgt (lbs.) |
| 1034-CP-02 | 2" | 4.000" | 0.5 |
| 1034-CP-03 | 3" | 4.000" | 1 |
| 1034-CP-04 | 4" | 4.000" | 1 |
| 1034-CP-05 | 5" | 4.500" | 1 |
| 1034-CP-06 | 6" | 4.500" | 1 |
| 1034-CP-07 | 7" | 4.500" | 1 |
| 1034-CP-08 | 8" | 4.500" | 2 |
| 1034-CP-09 | 9" | 4.500" | 2 |
| 1034-CP-10 | 10" | 4.500" | 2 |
| 1034-CP-11 | 11" | 4.500" | 2 |
| 1034-CP-12 | 12" | 4.500" | 2 |
| 1034-CP-14 | 14" | 4.500" | 2 |
| 1034-CP-16 | 16" | 4.500" | 3 |
| 1034-CP-18 | 18" | 4.500" | 3 |
| 1034-CP-20 | 20" | 4.500" | 4 |
| 1034-CP-24 | 24" | 4.500" | 5 |
 |
|||
| Pipe Hangers | |||
|---|---|---|---|
| Stainless Steel | |||
| List Prices | |||
| Part No. | Size | Description | List Price |
| PH-04 | 4" | 4" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-06 | 6" | 6" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-08 | 8" | 8" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-10 | 10" | 10" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-12 | 12" | 12" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-14 | 14" | 14" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-16 | 16" | 16" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-18 | 18" | 18" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-20 | 20" | 20" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
| PH-24 | 24" | 24" Pipe Hanger SS 304 | PLEASE CALL FACTORY |
 |
|||
| Cap | |||
|---|---|---|---|
| (Belled) | |||
| Dimensions | |||
| Part No. | Size | A | Approx. Wgt (lbs.) |
| 1034-CA-03 | 3" | 2.000" | 1 |
| 1034-CA-04 | 4" | 2.000" | 1 |
| 1034-CA-06 | 6" | 2.000" | 1 |
| 1034-CA-08 | 8" | 2.000" | 2 |
| 1034-CA-10 | 10" | 2.000" | 2 |
| 1034-CA-11 | 11" | 2.000" | 2 |
| 1034-CA-12 | 12" | 2.000" | 2 |
| 1034-CA-14 | 14" | 2.000" | 3 |
| 1034-CA-16 | 16" | 2.000" | 3 |
| 1034-CA-18 | 18" | 2.000" | 4 |
| 1034-CA-20 | 20" | 2.000" | 6 |
| 1034-CA-24 | 24" | 2.000" | 7 |
| Revised Dimension 4-28-11 | |||
 |
|||||

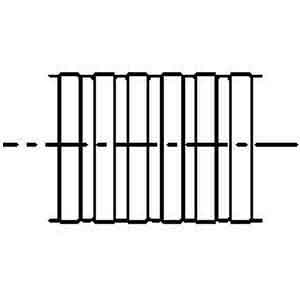

| Flexible PVC Duct | |||||
|---|---|---|---|---|---|
